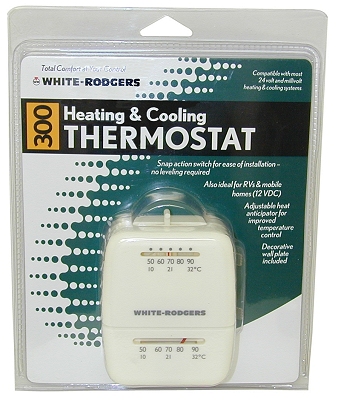

FEATURES
- Rugged snap-action contacts for ease of installation - no leveling required
- Adjustable heat anticipator
- Bi-Metal thermometer
- Temperature Range: 50-90°F(10-32°C)
- Includes switching subbase & optional wall plate
- Compatible with most 24volt and millivolt heating and cooling systems
- Ideal for RVs & mobile homes (12VDC)
- Mounting Hardware & Installation Guide Included
- Classic White Color
SPECIFICATIONS
- Anticipation Rating, Heating… Adjustable from 0.15 to 1.2 Amps
- Anticipation Rating, Cooling… Fixed
- Differential, Heating ……… 2°F (1.1°C)
- Differential, Cooling ……… 4°F (2.2°C)
- Dimensions ……………… 3-3/4” H x 2-7/8” W x 1-1/2” D
- Dimensions, Switching Models 3-3/4” H x 3-1/8” W x 1-5/8” D
- Electrical Rating …………… mV to 30V, 50/60 Hz or DC
- Optional Wallplate ………… 5-1/8” H x 5” W
