- Range: 0 to 6 Lbs
- 1A Classification - Synonymous with Grade A1, Grade 1A & Class 1A
- Factory calibrated to an accuracy of ±1% over the entire span of the scale
- Phosphor Bronze Diaphragm mechanism
- Black painted Steel Case with Plastic Lens
- 4” Dial Face
Dual Scale:
- Inner - Inches of Mercury
- Outer - PSI (1/10th Lb increments)
- Independant Set Pointer needle, to manually mark reading and easily observe pressure changes
- Bottom 1/4” NPT Brass connection
- Orifice Restrictor helps reduce damage from pressure shock and momentary pressure pulses
- Styrofoam Storage Case included. Protects gauge, hex body & valve even after assembly. Can also be cut to allow a pipe nipple to remain attached.
- Hex Body and Air Valve are included
- Intended for use with nitrogen or air.
- Do not use with gases incompatible with copper-based compounds.
- Do not use with any liquid.
- Meets City of Houston Code Word 94-108;
- Section 1204.3.2; Revised January 19, 2001
- Meets City of Dallas IRC Amendments section
- G2416.4 (§FG406.4); Revised January 2002
- Recalibration services are available.

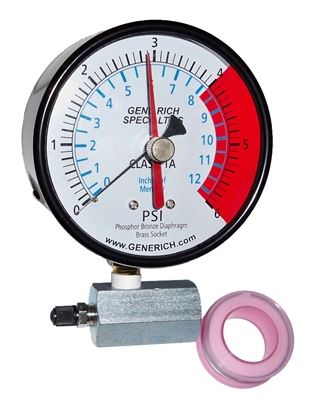

Factory Calibrated 0-15#, 4" Diaphragm Pressure Gauge + Body
Item #T1810
Regular Price:
$146.5556 Ea
